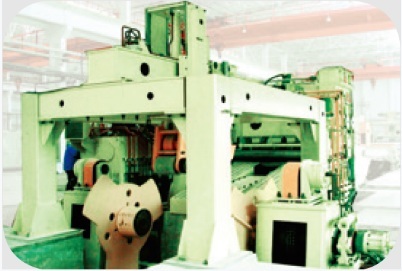

CNC Cut To Length Production Line

The production line is used to decoil, level, cut~to~length, trim, and stack the hot rolled steel coil blank starting with thickness 2~30mm, width 700~2500mm, which provides finished blank for auto

keyword :

11



11



The production line is used to decoil, level, cut~to~length, trim, and stack the hot rolled steel coil blank starting with thickness 2~30mm, width 700~2500mm, which provides finished blank for auto, steel structure, and vehicles industry etc;
It is used to cut the coil into the plate with required length and width. It is suitable to hot rolled carbon steel, stainless steel and pickling plate, etc.



11



1. Decoiling fast and efficiently;
2. High degree of automation, easy and reliable operation;
3. High precision and flatness;
4. Automatic stacking.

11

11



11



Specifications/Type

JCL~8×2000

JCL~12×2000

JCL~16×2150

JCL~20×2500

JCL~25×2500

JCL~30×2500

Thickness(mm)

2~8

3~12

4~16

5~20

6~25

8~30

Width(mm)

700~2000

700~2000

700~2150

900~2500

900~2500

900~2500

Cutting accuracy(mm)

±1

±1

±1.5

±1.5

±2

±2

Line speed(m/min)

40

40

20~40

20~40

20~40

20~40

Stacking weight(t)

8

8

8

8

10

10

Coil weight(t)

30

30

35

40

40

40
