CNC Punching Line For Web And Flanges Of U Beam With Four Punching Units

Automatic loading and unloading of U beam, automatic location, and automatic operation without manual work. Especially suitable for automatic batch production for holes on web and flanges of U beam.

keyword :

11



11



■ Automatic loading and unloading of U beam, automatic location, and automatic operation without manual work. Especially suitable for automatic batch production for holes on web and flanges of U beam.

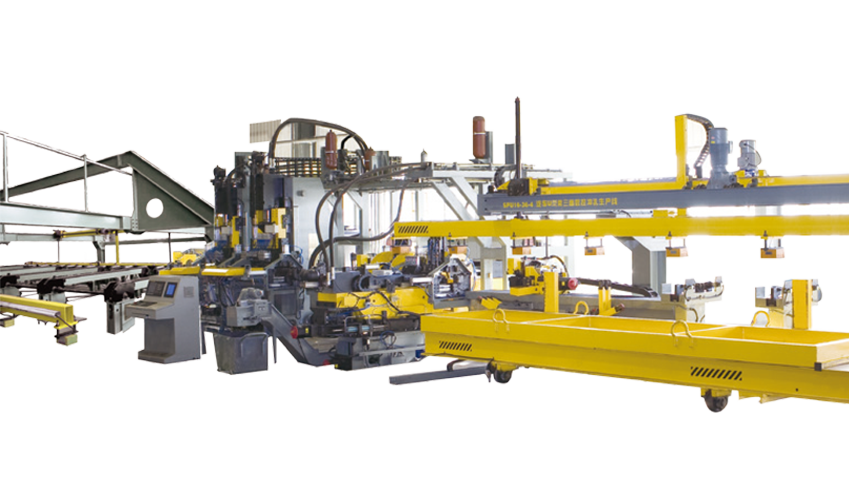

■ The line consists of four punching units. Two of them are assembled on the vertical of the machine line to punch holes on the web surface, while the other two are assembled on the left and right sides of machine line to punch holes on the two flanges surface.



11



Specification/Type

Unit

Three punching units for web and flanges

Four punching units for web and flanges

Five punching units for web and flanges

Punch for flanges

Nominal force

KN

1200/
450/450

1600/
600/600

600/1200/
450/450

800/1600/
600/600

800/800/
1600/600/600

600/600/
1200/600/600

450/450

650/650

Max. beam thickness

mm

8

10

10

10

8

8

10

10

Max. beam size

Beam length

mm

12000

12000

12000

12000

12000

12000

12000

12000

Outside width

mm

360

360

360

360

360

360

360

360

Flange height

mm

100

100

100

100

100

100

100

100

Max. one punching diameter

mm

Φ50

Φ50

Φ50

Φ50

Φ50

Φ50

Φ21

Φ23

Number of tools

set

25/6/6

25/6/6

18/21/6/6

18/21/6/6

18/18/8/6/6

18/18/8/6/6

6/6

6/6

Max.beam weight

kg

600

600

600

600

600

600

600

600

Quantity of clamps

PC

2/3

2/3

3

3

3

3

2

2
