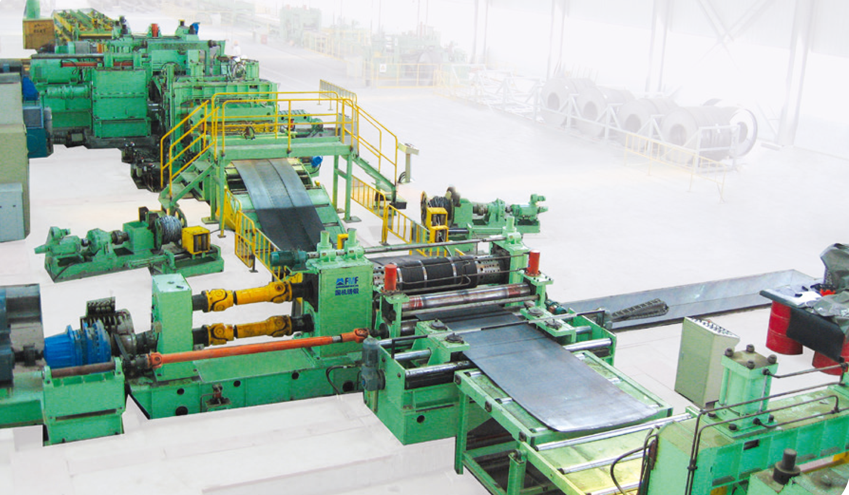

CNC Slitting Production Line

It is used to decoil, level, slit, and recoil of hot~rolled coil in 2~16mm thickness and 700~2150mm width. It is suitable for hot~rolled carbon steel, stainless steel, and pickling steel. Special slit

keyword :

11



11



It is used to decoil, level, slit, and recoil of hot~rolled coil in 2~16mm thickness and 700~2150mm width. It is suitable for hot~rolled carbon steel, stainless steel, and pickling steel. Special slitting line for high~tense truck beam has been developed, which satisfy the upgrading demand of the truck frame.



11



11



Specifications/Type

JSL~8×1850

JSL~12×2000

JSL~16×2500

Thickness(mm)

2~8

3~12

4~16

Width(mm)

700~1850

700~2000

700~2500

Slitting strips

8~20

8~20

8~20

Slitting accuracy(mm)

±0.2

±0.2

±0.2

Slitting speed(m/min)

40

40

30

Coil weight(t)

30

30

35
