CNC Punching Line For Web Of U Beam

Automatic loading and unloading of U beam, automatic location, and automatic operation without manual work. Especially suitable for automatic batch production for holes on web of U beam.

keyword :

11



11



■ Automatic loading and unloading of U beam, automatic location, and automatic operation without manual work. Especially suitable for automatic batch production for holes on web of U beam.

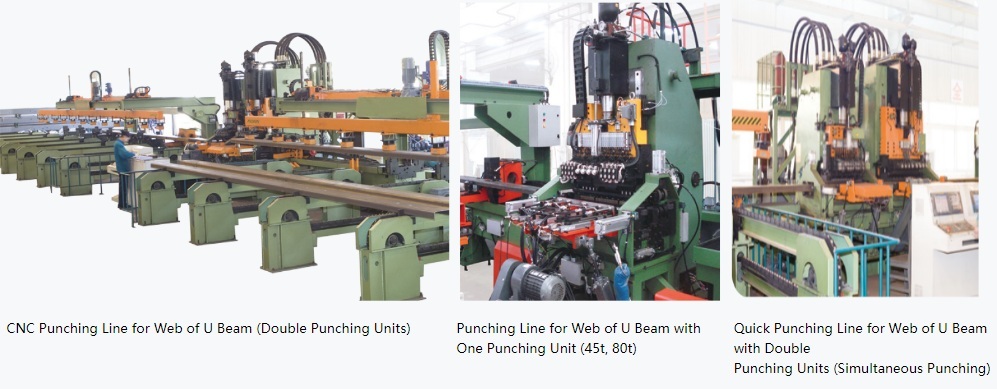

■ The line can equipped with one or two punching units. In the two punching units, the smaller has hole- searching function on X and Y directions and punch holes simultaneously with the bigger one, which greatly improves the productivity.
■ Each punching unit has forth- back detection function, so the shape error of beam can be detected and compensated in accuracy. Even though for the same beam, different holes can appoint different flanges as location standard.



11



Specification/ Type

SPU Single Punch Unit for Web

SPU Double Punch Units for Web

SPU04-21

SPU08-28

SPU12-36

SPU16-36-2

SPU20-36-2

Small Punch Unit Fix / Move in X Axis (two options)

Nominal force

kN

450

800

1200

600/1200

800/1600

1000/2000

Max. beam thickness (16MnL)

mm

6

8

10

10

10

10

Max. beam size

Beam length

mm

7000

8000

12000

12000

12000

12000

Outside width

mm

210

280

360

360

360

360

Flange height

mm

80

80

100

100

100

100

Max. one punching diameter

mm

Ф40

Ф40

Ф50

Φ50/Φ23

Φ60/Φ23

Φ60/Φ23

Number of tools

set

16/20

21

25

18/8

18s/21

18/18

Max.beam weight

kg

200

500

600

600

600

600

Quantity of clamps

PC

2

2

2

2

2

2
